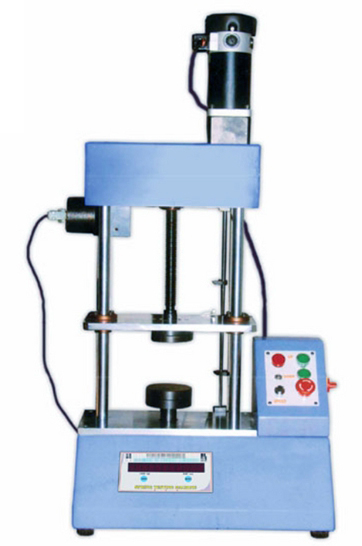

Spring Testing Machine (Manually Operated)
Manually operated spring testing machine is a mechanical device used to measure the properties and characteristics of springs. It is designed to apply controlled forces or loads to a spring and measure its deformation or response, allowing for the determination of important parameters such as spring rate, load capacity, stiffness, and resilience.
Here are the key components and features typically found in a manually operated spring testing machine:
- Load Application Mechanism: The machine is equipped with a mechanism that applies a specific load or force to the spring being tested. This can be achieved through the use of a hand crank, lever, or hydraulic/pneumatic system, depending on the design and capacity of the machine.
- Load Measurement: The machine incorporates a load measuring system, such as a load cell or a mechanical force gauge, to accurately measure the applied load. The load measurement device may have a built-in scale or display to provide real-time load readings.
- Deformation Measurement: To assess the deformation of the spring, the machine includes a displacement measurement system. This can be in the form of a dial gauge, digital displacement sensor, or linear displacement transducer (LVDT), which measures the change in length or displacement of the spring as the load is applied.
- Gripping or Clamping Mechanism: The machine features a mechanism to securely grip or clamp the ends of the spring to ensure it remains in position during testing. This helps to prevent slippage or movement of the spring during the application of the load.
- Testing Controls: The machine is equipped with controls that allow the operator to manually apply the load, monitor the load and displacement readings, and control the test parameters. These controls may include knobs, buttons, or levers for load adjustment and measurement.
- Safety Features: Safety features are incorporated to ensure the operator’s safety during testing. This may include safety guards, emergency stop buttons, and overload protection mechanisms to prevent excessive loads.
Manually operated spring testing machines are commonly used in quality control laboratories, research and development facilities, and manufacturing environments where springs are produced or utilized. They provide a cost-effective and practical solution for assessing the performance and compliance of springs, aiding in the design, selection, and optimization of springs for various applications.
