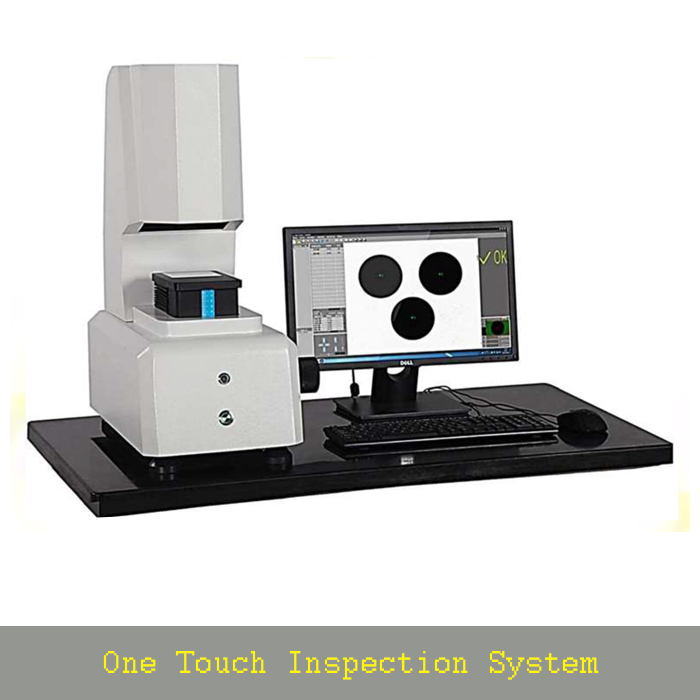

One Touch Inspection System

HOTI- Series

It is a completely innovative measuring instrument designed around simple Place and Press operation. This allows anyone, regardless of expertise and skill level, to easily, quickly, and accurately perform hundreds of measurements in just seconds. These instruments capture an image of a target, identify the edges to be measured based on human vision (or automatic recognition), measure the movement of the X Y stage, and obtain the dimensions of the target.
Our HOTI Series obtains profile of the whole part first, upon which measurements are carried out. This is possibly by our experience and expertise in high-performance optics. This allows an operator to simply place the part on the stage and hit measure to perform hundreds of measurements in seconds.
HOTI Series have advantages compared with conventional quality inspection instruments, it performs high-precision measurements, automatically records data and generates the report with the push of a button.

Description

Desciption

One Touch Inspection System – HOTI- Series

One Touch Inspection System is a completely innovative measuring instrument designed around simple Place and Press operation. This allows anyone, regardless of expertise and skill level, to easily, quickly, and accurately perform hundreds of measurements in just seconds. These instruments capture an image of a target, identify the edges to be measured based on human vision (or automatic recognition), measure the movement of the X Y stage, and obtain the dimensions of the target.
One Touch Inspection System HOTI Series obtains profile of the whole part first, upon which measurements are carried out. This is possibly by our experience and expertise in high-performance optics. This allows an operator to simply place the part on the stage and hit measure to perform hundreds of measurements in seconds. HOTI Series have advantages compared with conventional quality inspection instruments, it performs high-precision measurements, automatically records data and generates the report with the push of a button.

Features

Key Features :
The image dimension measurement system features simple place and press operation, providing both incredible measurement speed and high measurement accuracy. Simply target the stage and press the measurement start button, and the system executes the measurement of a number of points in the captured image in only seconds. No variation in measurement results among different operators. When target edges are identified based on human vision, it is impossible to eliminate variations and errors caused by individual differences or skill levels. With the HOTI Series image dimension measurement system that detects edges automatically, the measurement result is stable and consistent regardless of operators. Measurement results are automatically recorded and generated reports. All measurement results and critical identifiers are automatically recorded to simplify data management, then calculates and display critical statistical values. The HOTI Series obtains an image of the part using its unique wide-field, high-precision telecentric optical system. The telecentric optical system features constant image size regardless of height differences, a large depth-of-field for sharp focus at various heights, and no image distortion despite part placement on stage. The edges (boundaries between bright and dark areas) of the captured image are accurately detected using our sub-pixel processing (to 1/100th or less of a pixel) upon which defined measurements are performed in seconds.
